P0CDF means the hybrid or electric vehicle battery control system has detected an electrical problem in the battery pack coolant control valve A circuit. The fault may come from the valve, its wiring, a connector, a fuse, a control module, or a cooling-system issue that has damaged the electrical components. Do not replace the valve automatically: testing the circuit first is the fastest way to avoid an expensive misdiagnosis.
What Does P0CDF Mean?
P0CDF is a powertrain diagnostic trouble code associated with the hybrid/EV battery pack coolant control valve A circuit. This valve regulates coolant flow through or around the high-voltage battery thermal-management system. Depending on the vehicle, it may direct coolant to the battery chiller, radiator, heater, bypass passage, or another part of the thermal circuit.
The word “circuit” is important. P0CDF does not automatically prove that the coolant valve itself is mechanically stuck. The battery energy-control module is usually monitoring electrical values such as supply voltage, ground quality, actuator current, and feedback position. If those values do not match the expected range, the module stores the code and may limit battery output.
Why Battery Coolant Valve Operation Matters
A hybrid battery operates within a relatively narrow temperature window. Too much heat accelerates battery degradation, while excessive cooling can reduce charging efficiency and performance. During rapid charging, uphill driving, or repeated acceleration, the battery coolant valve helps the vehicle manage heat before it becomes a safety or durability problem.
A valve that fails open, fails closed, or loses electrical control can produce different symptoms. A vehicle may appear to drive normally on a cool day but reduce power after highway driving or fast charging. That intermittent pattern is a useful clue: thermal faults often become more obvious when the battery and wiring harness are hot.
Common Causes of P0CDF
- Open, shorted, or corroded wiring near the coolant valve
- Water intrusion in the valve connector or battery thermal-management harness
- A blown fuse, weak power supply, or poor ground
- A failed coolant control valve actuator or position sensor
- Coolant contamination, crystallization, or physical blockage inside the valve
- Damage caused by rodents, road debris, collision repairs, or incorrect service work
- A failed hybrid battery control module or related communication fault
- Low coolant level or air trapped in the system after cooling-system service
One practical detail is often overlooked: low coolant may not be the direct cause of a circuit code, but a leak can run down the harness and enter the connector. If the connector shows white or green deposits, cleaning the pins alone is not a reliable repair; the terminal tension and wire insulation also need inspection.
Symptoms You May Notice With P0CDF
- Check Engine, hybrid system, EV system, or service warning message
- Reduced electric power or limited hybrid assistance
- Cooling fans running more often or at high speed
- Reduced regenerative braking or restricted charging
- Battery temperature warnings during heavy use
- Poor fuel economy or reduced EV driving range
- Intermittent warning lights that disappear after the vehicle cools down
Some vehicles will continue driving with P0CDF, but that does not make the code harmless. The system may be protecting the high-voltage battery by disabling charging or reducing output. If a red hybrid-system warning, overheating message, smoke, or a strong coolant smell is present, stop driving and arrange professional inspection.
How a Professional Diagnoses P0CDF
Accurate diagnosis requires a scan tool that can access the hybrid battery and thermal-management modules. A basic generic OBD2 reader may display P0CDF but usually cannot show the valve command, actual position, battery temperature data, or manufacturer-specific subcodes.
- Confirm the code and freeze-frame data. Record whether the fault occurred during charging, acceleration, hot weather, or a cold start. Check for related battery temperature, coolant-pump, communication, and voltage codes.
- Inspect the cooling system. Check coolant level, visible leaks, hose condition, air pockets, and evidence of contamination. Do not open a pressurized system while hot.
- Inspect the valve and harness. Look for crushed wires, stretched terminals, corrosion, rodent damage, and connectors that do not lock securely.

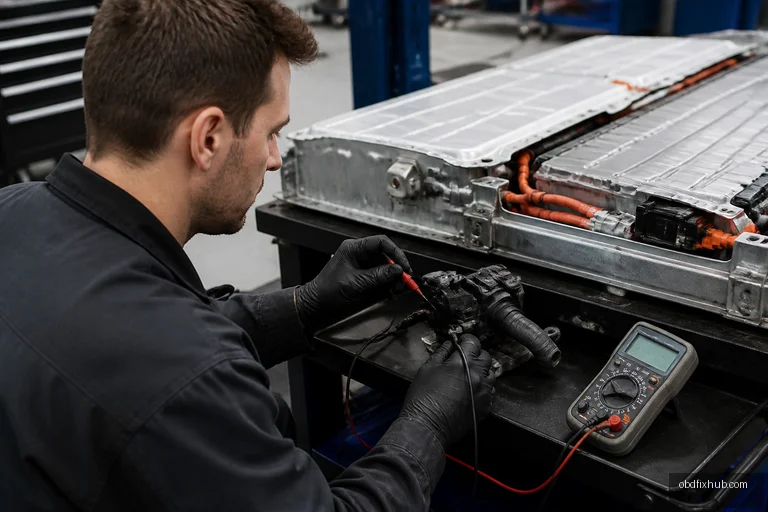

- Test power and ground under load. A multimeter may show voltage with no load while the circuit fails when the actuator is commanded. Voltage-drop testing is more revealing than a simple continuity check.
- Command the valve with a bidirectional scan tool. Compare the commanded position with the reported position and listen for abnormal clicking or a silent actuator.
- Check resistance only against factory specifications. Valve resistance varies by design, so a generic “normal” resistance value is not dependable.
- Repair, bleed, and verify. After the electrical repair, the cooling system may require a manufacturer-specific bleed procedure and a drive cycle under the conditions that originally set the code.
High-voltage safety is non-negotiable. The coolant circuit may be low voltage, but it is located near high-voltage battery components. Only trained personnel using the correct service disconnect procedure, insulated tools, and personal protective equipment should work in that area.
P0CDF Repair Options and Typical Cost Factors
The correct fix depends on the test result. A damaged connector or broken wire may be repaired without replacing the valve. If the actuator fails an electrical or bidirectional test, replacing the coolant control valve and installing new seals may be appropriate. A coolant flush or bleeding procedure is needed when contamination or trapped air is found.
Cost varies sharply between models. A wiring repair can be relatively modest, while access to a valve buried behind battery shields, underbody panels, or other thermal components can add substantial labor. If a control module is suspected, confirm power, ground, network communication, and software updates before condemning it. Module replacement should be the last conclusion, not the first guess.
What Does Code P0A7F Mean on a Honda Civic Hybrid?
P0A7F means Hybrid Battery Pack Deterioration. On a Honda Civic Hybrid, it generally indicates that the battery-management system has determined the high-voltage hybrid battery no longer meets expected performance or capacity standards. It is not the same fault as P0CDF: P0A7F concerns battery condition, while P0CDF concerns the electrical control circuit for a battery coolant valve.
A weak 12-volt battery, poor connections, temperature problems, or inaccurate battery data can sometimes create misleading hybrid warnings, so proper testing matters. A technician should review battery block voltage, state-of-charge changes, temperature readings, charging behavior, and related IMA or hybrid codes before recommending battery replacement.
Can You Clear P0CDF Yourself?
You can clear the code with a compatible scan tool, but clearing it does not repair the fault. If the problem remains, the warning will return—often when the battery becomes hot or the valve is commanded to move. Disconnecting the 12-volt battery can also erase learned data and other diagnostic information, making the original fault harder to trace.
The better approach is to save the diagnostic report, inspect the accessible connector and coolant level without touching high-voltage components, and have the circuit tested. Avoid bypassing the valve or applying battery voltage directly unless the factory service procedure specifically authorizes it.
Key Takeaway
P0CDF identifies a problem in the hybrid/EV battery pack coolant control valve A circuit, but the root cause may be wiring, power supply, connector corrosion, coolant contamination, the actuator, or a control module. A professional scan tool, voltage-drop testing, actuator commands, and a careful cooling-system inspection provide a much more reliable diagnosis than simply replacing parts. If your vehicle also shows overheating or high-voltage warnings, stop driving and seek qualified hybrid service.
Frequently Asked Questions
Is P0CDF safe to drive with?
Short trips may be possible on some vehicles, but continued driving can cause reduced power, restricted charging, or battery overheating. Do not drive if a red hybrid warning, overheating message, smoke, or unusual odor appears.
Does P0CDF always mean the coolant valve is bad?
No. The code describes a circuit fault, so wiring, connectors, fuses, grounds, coolant contamination, and the control module must be tested before replacing the valve.
Can low coolant cause P0CDF?
Low coolant is not always the direct cause of this electrical code, but a leak can damage the valve connector or harness. Low coolant can also create separate thermal-management faults.
What is the difference between P0CDF and P0A7F?
P0CDF relates to the battery coolant control valve A circuit. P0A7F indicates hybrid battery pack deterioration, such as reduced battery performance or capacity.
