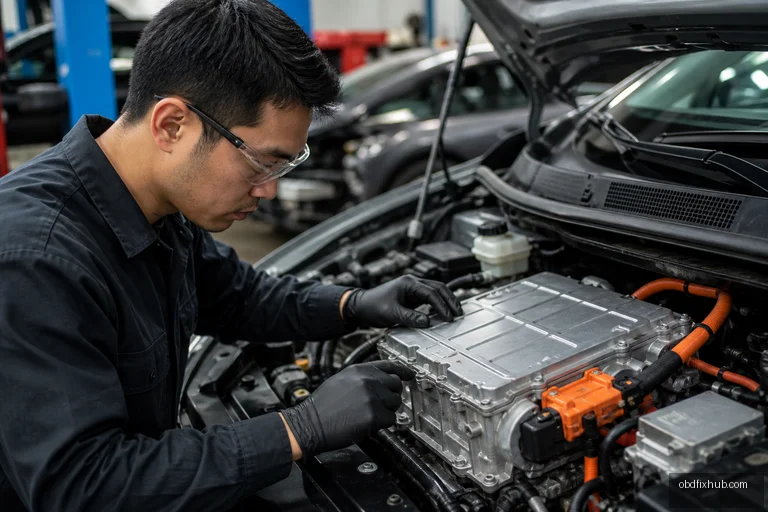

P0C79 means the vehicle’s control system has detected excessively high voltage at the drive motor inverter, usually on a hybrid or electric vehicle. This does not automatically mean the inverter itself is defective: a high-voltage battery, regenerative-braking event, voltage sensor, wiring fault, or failed inverter control circuit can produce the same code. Because the system may contain several hundred volts even after the vehicle is switched off, diagnosis should be handled with proper high-voltage safety equipment.
What Does OBD-II Code P0C79 Mean?
P0C79 is a generic OBD-II diagnostic trouble code defined as Drive Motor “A” Inverter Voltage Too High. The inverter converts the hybrid or EV battery’s DC power into controlled three-phase AC power for the traction motor. During deceleration, it performs the reverse function: it converts motor-generated AC power back into DC energy for battery charging.
The powertrain control module monitors inverter input voltage, output voltage, current, and temperature. If the measured or calculated voltage exceeds a permitted threshold for a specific period, it stores P0C79 and may disable electric propulsion. The exact voltage limit and component naming vary by manufacturer, so factory service information is more reliable than a universal voltage figure.
Why Is My Inverter Giving High Voltage?
An inverter may report high voltage for two very different reasons: the voltage is genuinely too high, or the control module is receiving an inaccurate voltage signal. In practice, technicians should not replace an expensive inverter until both possibilities have been separated.
- Overcharged or abnormal high-voltage battery: A battery with a faulty state-of-charge calculation, damaged cells, or charging-control problem can raise DC bus voltage beyond the expected range.
- Regenerative-braking overvoltage: A failed battery-management system or restricted battery charging path can prevent the inverter from safely absorbing energy during downhill driving or hard deceleration.
- Inverter voltage-sensor failure: The internal sensor or its signal-conditioning circuit may falsely report excessive voltage.
- Open, shorted, or corroded wiring: Water intrusion, loose terminals, rodent damage, and poor connector contact can distort the voltage feedback signal.
- Inverter control or power-stage failure: A damaged transistor module, capacitor, gate-driver circuit, or internal bus-bar connection can create abnormal voltage behavior.
- Cooling-system problems: A blocked radiator, failed electric coolant pump, air in the inverter loop, or low coolant level can cause protection faults after the inverter becomes hot.
- Software or calibration issues: Low 12-volt voltage, a control-module reset, or outdated software can create implausible hybrid-system readings.
Common P0C79 Symptoms
Some vehicles continue driving with reduced electric assistance, while others shut down the hybrid system immediately. The severity depends on whether the control module sees a momentary spike or a persistent unsafe condition.
- Hybrid system, EV system, or “Stop Safely” warning message
- Check Engine Light and additional hybrid warning indicators
- Reduced acceleration or limp-home operation
- Gasoline engine running continuously instead of stopping at idle
- Loss of regenerative braking or a change in brake-pedal feel
- Inability to enter READY mode
- Cooling fan noise, inverter overheating, or coolant-pump activity
- Multiple battery, motor, isolation, or inverter communication codes
A vehicle that still moves normally is not necessarily safe to continue driving. If the warning appears together with smoke, a burning smell, unusual electrical noise, fluid leakage, or sudden loss of propulsion, stop in a safe location and arrange professional recovery.
How P0C79 Should Be Diagnosed
A basic code reader is rarely sufficient. The diagnostic scan must access the hybrid control system, battery ECU, inverter ECU, and motor-control modules, not just the engine computer. Record freeze-frame data and all companion codes before clearing anything.
- Confirm the code and operating conditions. Note battery state of charge, vehicle speed, coolant temperature, inverter temperature, and whether the code appeared during charging, acceleration, or regenerative braking.
- Check the 12-volt electrical system. A weak auxiliary battery can cause communication errors and implausible sensor readings. Test voltage under load rather than relying only on an open-circuit reading.
- Inspect connectors and cooling components. Look for moisture, green corrosion, pushed-back terminals, damaged shielding, rodent damage, low coolant, and a non-operating inverter pump. Never unplug orange high-voltage connectors casually.
- Compare live data. A professional scan tool can compare battery voltage, inverter DC-link voltage, commanded motor torque, and sensor readings. A reading that jumps suddenly while actual system conditions remain stable points toward feedback or wiring.
- Follow the manufacturer’s high-voltage test procedure. This may include insulation testing, voltage verification, battery-cell comparison, and inverter signal checks. Use only tools rated for the vehicle’s maximum voltage category.
- Determine the failed section before replacing parts. If the battery voltage is normal but the inverter feedback is implausible, the inverter or its circuit becomes more likely. If several battery and charging codes are present, begin with the battery-management system.
Do not probe orange cables with an ordinary multimeter, bridge inverter terminals, or work on the system while the vehicle is merely switched off. Many hybrid systems retain dangerous voltage, and some service procedures require a specified wait time after the service disconnect is removed. Manufacturer training and insulated personal protective equipment are essential.
P0C79 Repair Options
The correct repair depends on the test results rather than the code description alone. Possible solutions include repairing a damaged harness, cleaning or replacing a connector, updating control-module software, restoring inverter coolant flow, replacing a failed voltage sensor, or replacing the inverter assembly. In some models, the sensor or power module is not available separately, making inverter replacement the prescribed repair.
After the repair, the technician should clear the codes, verify isolation resistance where required, perform the manufacturer’s initialization or calibration routine, and road-test the vehicle while monitoring inverter and battery data. Simply clearing P0C79 without confirming normal voltage behavior can leave the underlying fault untouched.
What Does Toyota Code P0A78 Mean?
Toyota P0A78 generally means “Drive Motor A Inverter Performance.” It is related to the inverter and motor-control system, but it is not identical to P0C79. P0A78 often indicates that the inverter’s commanded and actual electrical behavior do not agree; it may be caused by an inverter power-stage fault, overheating, low auxiliary voltage, wiring problems, or a related battery or motor issue.
On Toyota and Lexus hybrids, P0A78 commonly appears with manufacturer-specific subcodes that provide far more useful information. Those subcodes should be retrieved before parts are ordered. A technician should also check for companion codes such as battery, isolation, motor position, communication, or cooling faults.
What Does Engine Code P0A2D Mean?
P0A2D is generally defined as Drive Motor “A” Position Sensor Circuit High. It points toward an excessively high signal in the motor-position sensor circuit, not directly to inverter voltage. The motor-position sensor tells the control system the rotor’s angle so the inverter can energize the three motor phases correctly.
A P0A2D fault can be caused by a damaged sensor, shorted signal wire, poor connector contact, incorrect reference voltage, motor wiring damage, or an internal motor problem. Because an incorrect rotor-position signal can make inverter operation unstable, P0A2D and P0C79 may appear together. Diagnose the position-sensor circuit and its reference voltage before condemning the inverter.
Can You Drive With P0C79?
Only a qualified technician who knows the vehicle’s safety strategy can make that decision. If the car has limited power, a red hybrid warning, no READY mode, abnormal braking, overheating, or an electrical odor, do not drive it. Even when the gasoline engine still operates, the system may unexpectedly disable propulsion or regenerative braking.
If the warning is intermittent and the vehicle behaves normally, drive only the minimum distance needed for professional diagnosis, avoiding heavy acceleration, steep descents, towing, and high-load conditions. Never attempt a DIY inverter repair without high-voltage training.
Key Takeaway
P0C79 is a high-voltage inverter monitoring fault, not proof that the inverter must be replaced. Start with a complete hybrid-system scan, 12-volt testing, connector and cooling inspection, and live-data comparison. Treat Toyota P0A78 as an inverter-performance code and P0A2D as a motor-position-sensor circuit code; both may help reveal the real cause when they appear alongside P0C79. For a safe and accurate repair, use factory procedures and a qualified hybrid or EV technician.
Frequently Asked Questions
Is P0C79 caused by a bad hybrid battery?
It can be, but not always. A battery overcharge condition, inaccurate state-of-charge calculation, or battery-management fault can raise inverter voltage. However, a faulty inverter sensor, harness, cooling system, or inverter power stage can create P0C79 even when the battery is healthy.
Will disconnecting the 12-volt battery clear P0C79?
It may erase some temporary data, but it does not repair the fault. The code will usually return when the control module repeats its voltage checks. Clearing codes can also remove freeze-frame information that helps identify the failure.
How much does a P0C79 repair cost?
Cost varies greatly by vehicle and failure point. A wiring or coolant repair may be relatively modest, while an inverter or high-voltage battery can be expensive. A proper diagnosis is worthwhile because replacing an inverter without testing the battery and feedback circuits can waste substantial money.
Is P0C79 the same as P0A78?
No. P0C79 specifically describes inverter voltage being too high, while P0A78 generally describes drive-motor inverter performance. They can share causes and may appear together, but manufacturer-specific subcodes and live data are needed to distinguish the failure.
Can a regular mechanic diagnose P0C79?
A general repair shop may retrieve the code, but diagnosis requires hybrid-capable scan equipment and high-voltage safety training. Choose a technician experienced with the specific vehicle’s battery and inverter system.
