What Does Ford Code P06E4 Mean?
P06E4 is a generic powertrain-related diagnostic trouble code for Control Module Wake-Up Circuit Performance. Modern vehicles do not keep every electronic module fully awake all the time. The body control module, powertrain control module, gateway, and other controllers enter sleep mode to reduce battery drain, then wake when the ignition is switched on, a door is opened, a key is detected, or another module sends a network request.
With P06E4, the expected wake-up sequence does not occur within the required time or the electrical behavior is outside the module’s allowable range. A scan tool may still communicate with some modules while another controller remains offline. That distinction is important: a vehicle can have a working battery and starter yet still fail to start because the PCM or another essential module never wakes correctly.
Common Symptoms of P06E4
- Intermittent no-start or crank-no-start condition
- Engine stalling immediately after starting or while driving
- Several warning lamps appearing at once
- “No communication” messages for the PCM, BCM, or gateway module
- Inoperative gauges, accessories, remote locking, or keyless-start functions
- Battery drain after the vehicle is parked
- Delayed ignition-on operation or a cluster that stays dark
In a real diagnostic case, the vehicle may start normally in the morning and refuse to start after sitting in hot weather. That pattern often points toward a voltage-drop, relay, connector, or module-temperature problem rather than a permanently open circuit.
What Causes the P06E4 Wake-Up Circuit Fault?
- Weak battery or unstable battery voltage: A battery can crank the engine and still collapse below the voltage needed by electronic modules.
- Bad grounds: Corrosion at the battery negative terminal, body ground, engine ground strap, or module ground can interrupt wake-up signals.
- Power distribution faults: Blown fuses, overheated fuse-box terminals, ignition relays, smart junction box faults, or loose connections are common suspects.
- Damaged wiring: Water intrusion, rodent damage, chafing, and aftermarket alarm or remote-start wiring can affect the wake-up circuit.
- CAN bus interference: A shorted CAN-H or CAN-L wire, or one failed module holding the network down, can prevent other controllers from waking.
- Software or configuration problems: A module may require reprogramming, configuration, or a Ford-specific software update.
- Internal module failure: This is possible, but it should be confirmed only after power, grounds, network integrity, and wake-up commands have been tested.
How to Diagnose P06E4 Correctly
1. Check battery voltage before chasing modules
Measure voltage directly at the battery posts, not only at the terminals. A healthy rested battery is typically around 12.4–12.7 volts. During cranking, voltage should generally remain above approximately 9.6 volts at room temperature. Ford vehicles with smart charging may show varying charging voltage, so do not condemn the alternator from one voltage reading alone.
2. Perform a complete module scan
Do not scan only the engine computer. Record every code from the PCM, BCM, ABS, instrument cluster, gateway, and other modules. If several modules report U-codes or communication faults at the same time, investigate the network power supply before replacing any individual controller.
3. Test power and ground under load

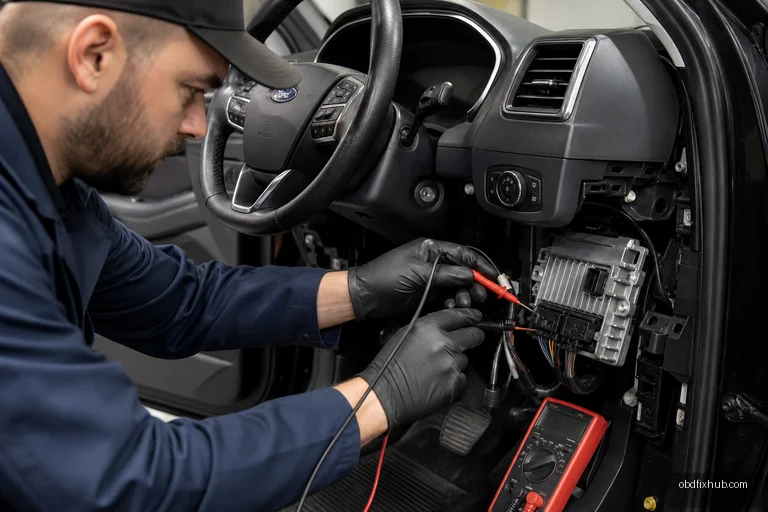

Visual inspection is not enough. Use a voltage-drop test while the ignition is on or during cranking. More than a small voltage drop across a ground strap, fuse connection, relay contact, or power feed indicates resistance that may be invisible at rest. Pay particular attention to fuse-box terminals that look normal but become warm under load.
4. Verify the wake-up signal and CAN network
The exact wake-up wire and expected voltage depend on the Ford model, engine, and module. Use the wiring diagram for the vehicle identification number and test the circuit with a multimeter or oscilloscope. A scope can reveal a wake-up pulse that is too short, distorted, or missing entirely. On a powered-down CAN network, abnormal resistance or a bus that remains active after the vehicle should sleep can identify a wiring or module problem.
5. Check for water intrusion and aftermarket equipment
Inspect the BCM area, passenger footwell, fuse boxes, door harnesses, and connectors for moisture or green corrosion. Aftermarket remote starters, trackers, dash cameras, audio systems, and alarm systems are frequent causes of incorrect wake-up behavior. Disconnect non-factory equipment temporarily and retest before condemning a Ford control module.
How Is P06E4 Fixed?
The repair depends on the failed part of the circuit. A successful fix may involve charging or replacing the battery, cleaning a ground, repairing a CAN wire, replacing a fuse-box relay, correcting water damage, removing an incorrectly installed accessory, or updating and configuring a module with Ford-compatible equipment.
Module replacement should be the final step, not the first. Many Ford modules require programming, parameter reset, or configuration after replacement. Installing a used module without checking compatibility can create additional communication and immobilizer faults. Clear the codes only after the repair, cycle the ignition, allow the vehicle to enter sleep mode, and perform a complete road test followed by another full scan.
Related Ford Codes: P06A6, P06A7, and P06B8
These codes are often listed alongside P06E4, but they describe different electrical problems. They should not automatically be treated as alternative descriptions of the wake-up circuit fault.
- P06A6 00 27: Generic databases commonly describe P06A6 as a high or out-of-range condition in the Sensor Reference Voltage B circuit. The “00 27” portion is Ford-specific additional fault information; its exact interpretation depends on the module and VIN. Check Ford service information rather than relying on a universal code website.
- P06A7 00 27: This is commonly associated with an intermittent or erratic Sensor Reference Voltage B circuit. Inspect sensors sharing that reference supply, their wiring, and the connector before replacing a sensor. A shorted sensor can pull the reference circuit down and create multiple related codes.
- P06B8: This is commonly decoded as Sensor Power Supply 2 Circuit/Open. Check the shared sensor supply fuse, wiring continuity, connector tension, and the sensors supplied by that circuit. Ford’s exact wording and diagnostic path can vary by model year.
If P06E4 appears with P06A6, P06A7, or P06B8, begin with battery voltage, grounds, shared power supplies, and module communication. One bad power feed can generate several apparently unrelated codes.
Can You Drive With P06E4?
Driving is risky if the vehicle is stalling, losing the instrument cluster, or intermittently losing communication with the PCM. A vehicle that starts today may stop without warning tomorrow. If the only symptom is a stored code and the vehicle operates normally, arrange diagnosis soon and avoid long trips until the cause is confirmed.
Frequently Asked Questions
What does the Ford DTC code P06A6 00 27 mean?
P06A6 is generally linked to a high or out-of-range Sensor Reference Voltage B circuit. The 00 27 suffix is manufacturer-specific information, so the Ford workshop manual and VIN-specific scan data are needed for an exact interpretation.
What does the P06B8 code mean in a Ford vehicle?
P06B8 is commonly associated with an open fault in Sensor Power Supply 2. Inspect the shared supply circuit, fuse, wiring, connectors, and all sensors using that feed before replacing components.
How do I fix a P06A7 error?
Diagnose the Sensor Reference Voltage B circuit for an intermittent or erratic signal. Check for loose terminals, chafed wiring, water intrusion, and a sensor shorting the shared reference line. A voltage and continuity test performed while moving the harness can expose an intermittent fault.
What does the Ford DTC code P06A7 00 27 mean?
It is commonly interpreted as an intermittent or erratic Sensor Reference Voltage B circuit fault. Ford’s 00 27 detail is not universal across all vehicles, so use VIN-specific service information to identify the affected circuit and module.
Key Takeaway
P06E4 is a wake-up and communication performance fault, not a guaranteed failed-module diagnosis. Start with battery condition, voltage drop, grounds, fuses, relays, CAN wiring, water intrusion, and aftermarket accessories. Only replace or reprogram a control module after those checks prove that the module itself cannot wake or communicate correctly.
